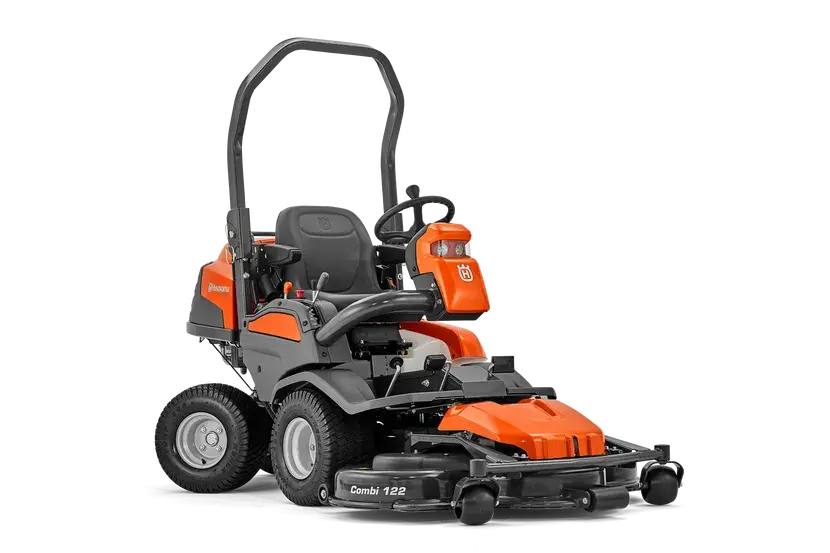

Compact and efficient All-Wheel-Drive front mower for year-round maintenance in complex and narrow areas. Suitable for sport clubs and hotels as well as housing agencies and contractors who want a versatile, compact front mower that is highly manoeuvrable. Thanks to the front-mounted cutting deck the operator has a perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Increased durability through long-life components. Attachments such as flail mower and broom give increased productivity all-year round. The P 524 can be fitted with either a 112 or 122 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets.

  • Engine    P 524
    Power/fuel type    Gasoline
    Net power at preset rpm Energy    13.9 kW
    Motor/engine manufacturer    Kawasaki
    Engine name    FX Series V-Twin
    Cylinder displacement    726 cm³
    Cylinders    2
    Engine cooling    Air
    Engine lubrication type    Full pressure
    Oil filter    Yes
    Exhaust emissions (CO2 EU V)
    792 g/kWh
    Battery capacity    24 Ah
    Battery type    Lead-Acid
    Battery pack weight    5.4 kg
    Battery manufacturer    Global
    Cutting deck
    Uncut circle    50 cm
    Cutting width, min    103 cm
    Cutting width, max    122 cm
    Cutting height min    25 mm
    Cutting height max    80 mm
    Blade engagement    Electric clutch
    Tyre dimensions, front    18x8.5-8
    Tyre dimensions, rear    18x8.5-8
    Wheelbase    100 cm
    Ground clearance    105 mm
    Base machine, length    205 cm
    Base machine, width    98 cm
    Base machine, height    117.4 cm
    Gross weight towed
    200 kg
    Weight (excl. cutting equipment)    427 kg
    Drive system
    PTO (Power Take Off)    Belt-driven
    Transmission type    Hydrostatic
    Transmission manufacturer, rear    Kanzaki
    Drive method    Dual pedal-operation
    Speed forward max    13 km/h
    Speed reverse max    5.6 mph
    Speed reverse max    9 km/h
    Transmission manufacturer, front    Kanzaki
    Transmission model, front    KTM 23LB
    Transmission model, rear    KTM 23SB
    Seat suspension    Yes
    Seat type    Premium
    Hour meter type    Digital
    Seat material    Vinyl
    Seat back height    High
    Foldable seat    Yes
    Steering wheel type    Professional
    Parking brake, type    Disc
    Vibration level steering wheel    3 m/s²
    Vibration level seat    0.7 m/s²
    Sound and Noise
    Sound pressure level at operators ear    88 dB(A)
    Sound power level, guaranteed (LWA)    104 dB(A)
    Sound power level, measured    102 dB(A)
