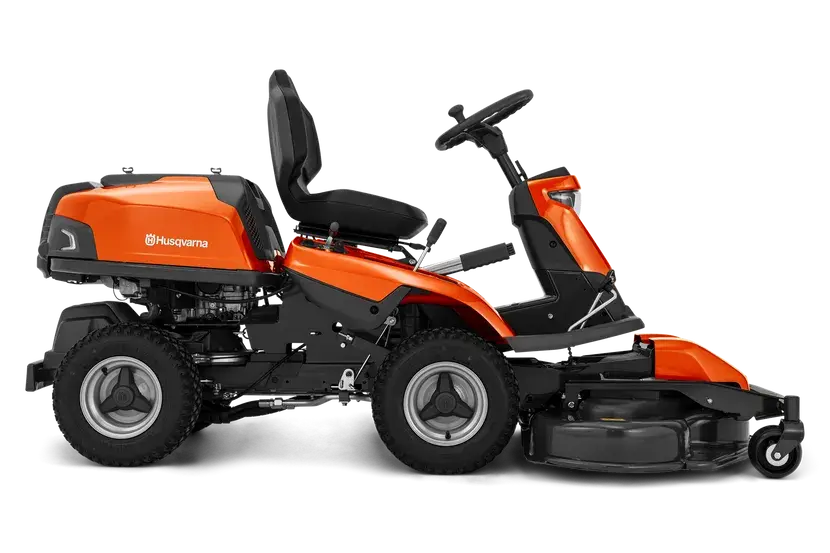

A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna R 316TsX AWD is superb for all-year use, with a great variety of accessories and comes complete with a 112cm combi cutting deck. Power-assisted articulated steering and All-Wheel-Drive provide great control and traction in challenging terrain. The engine hood covering the V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back. Ready for Husqvarna Connect with Bluetooth®.

  • Engine

    R 316TsX AWD

    Power/fuel type Gasoline
    Net power at preset rpm Energy 9.7 kW
    Motor/engine manufacturer Kawasaki
    Engine name FS481V
    Cylinder displacement 603 cm³
    Cylinders 2
    Engine cooling Air
    Engine lubrication type Full pressure
    Oil filter Yes

    Exhaust emissions (CO2 EU V)

    851 g/kWh
    Battery capacity 24 Ah
    Battery type Lead-Acid
    Battery pack weight 7 kg
    Battery manufacturer Global
    Cutting deck
    Uncut circle 30 cm
    Cutting width, min 94 cm
    Cutting width, max 112 cm
    Cutting height min 25 mm
    Cutting height max 75 mm
    Blade engagement Automatic
    Tyre dimensions, front 170/60-8
    Tyre dimensions, rear 170/60-8
    Wheelbase 88.7 cm
    Ground clearance 90 mm
    Base machine, length 200.8 cm
    Base machine, width 88.7 cm
    Base machine, height 118.1 cm

    Gross weight towed

    125 kg
    Weight (excl. cutting equipment) 251 kg
    Drive system
    PTO (Power Take Off) Belt-driven
    Transmission type Hydrostatic
    Drive method Dual pedal-operation
    Speed forward max 9 km/h
    Speed reverse max 5.9 mph
    Speed reverse max 8 km/h
    Seat suspension Yes
    Hour meter type Digital with pre-programmed service intervals
    Seat material Vinyl
    Seat back height High
    Foldable seat Yes
    Steering wheel type Comfort
    Parking brake, type Disc
    Vibration level steering wheel 2.5 m/s²
    Vibration level seat 0.7 m/s²
    Sound and Noise
    Sound pressure level at operators ear 84 dB(A)
    Sound power level, guaranteed (LWA) 99 dB(A)
    Sound power level, measured 98 dB(A)
